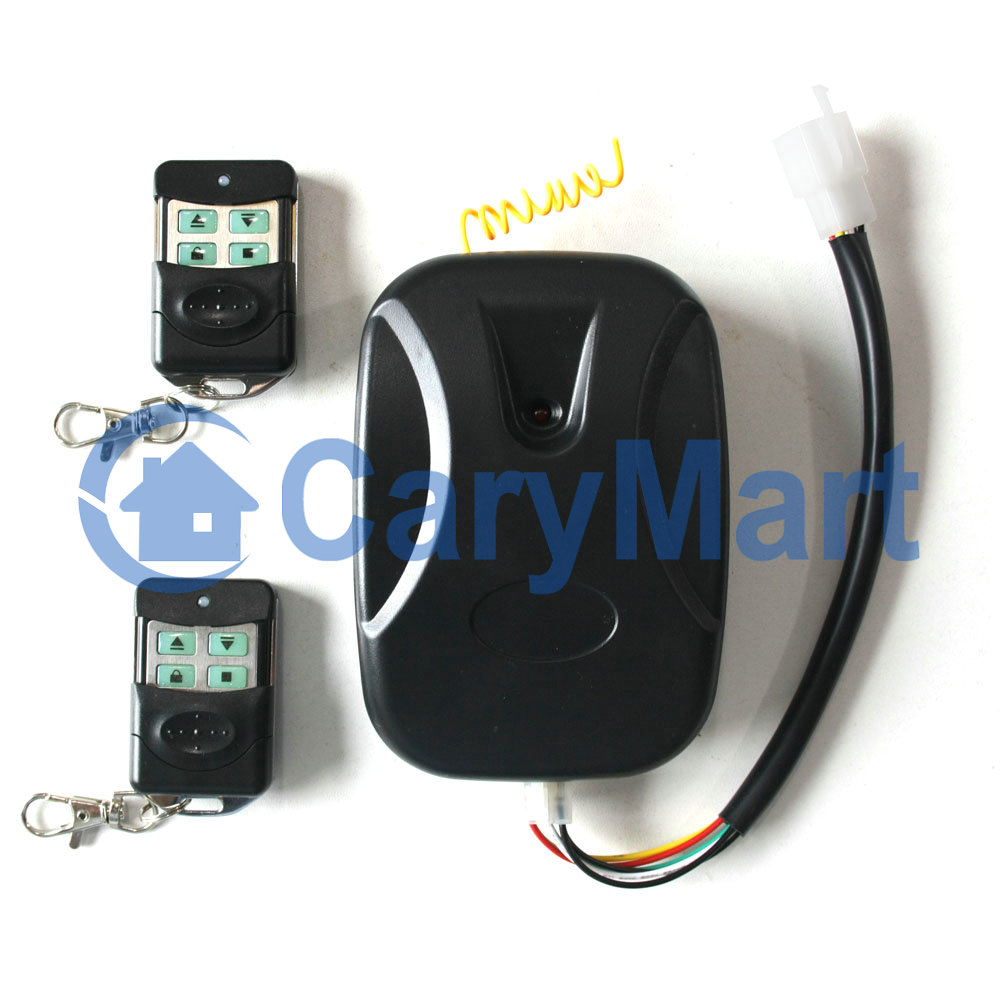

Package Include:
1 x
Receiver
2 x
Transmitter
1 x User
manual
Features:
Application: It can be used in rolling blinds, rolling doors,
projection screens, awnings, pumps, winches, conveyors or other appliances and
equipments with AC chain motors, it can remote
control AC chain motor to rotate in the positive or reversal direction.
Wireless control, easy
to install.
You can rotate a chain
motor in the positive or reversal direction with the transmitter (remote
control) from any place within a reliable distance.
The RF wireless signal
can pass through walls, floors and doors.
With
reverse power protection and over current protection.
One/several
transmitters can control one/several receivers simultaneously.
You can use
two or more units in the same place.
Receiver Parameters:
Power Supply
(Operating Voltage): AC 220~240V
Output: AC 220V / 5A
Working
Frequency: 433MHz
Channel: 1CH,
can work with a AC chain motor
Static Current: ≤6mA
Maximum
Working Current: 5A
Case
size: 130mm x 85mm x 40mm
Work with learning code transmitters.

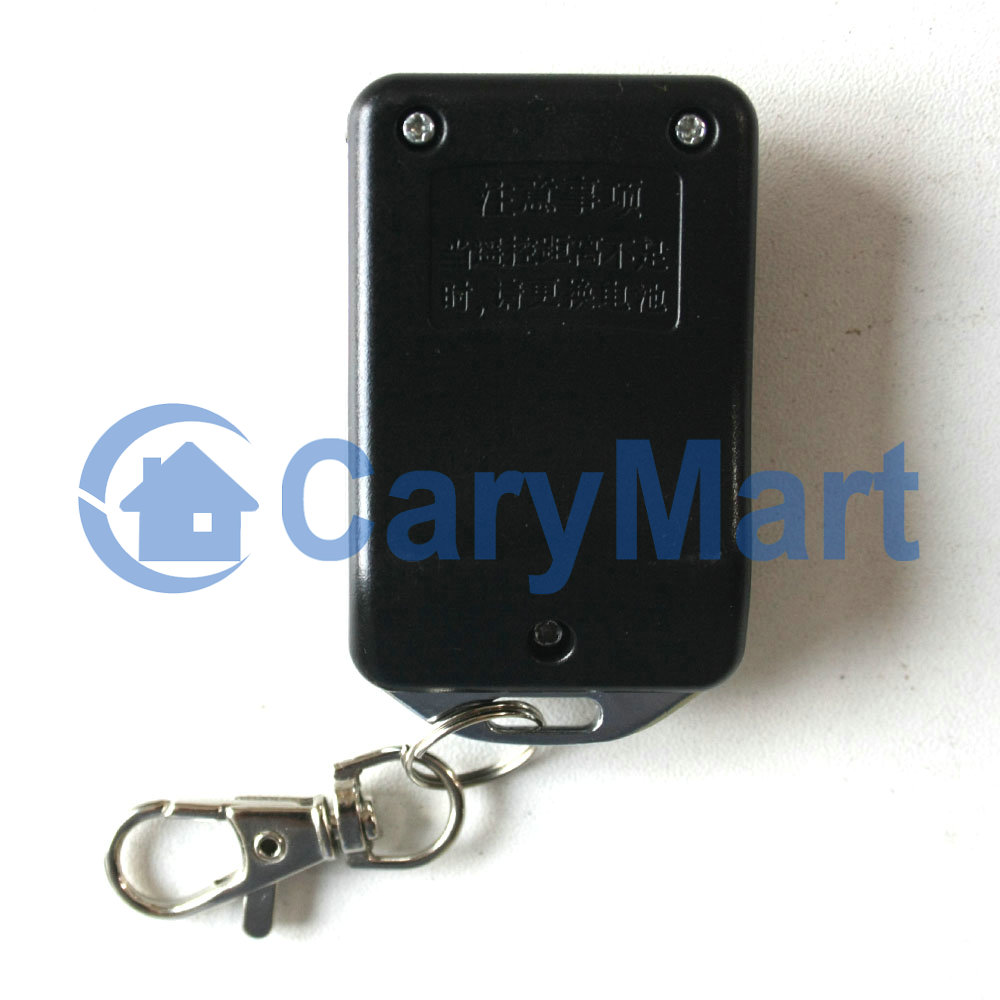

Transmitter:

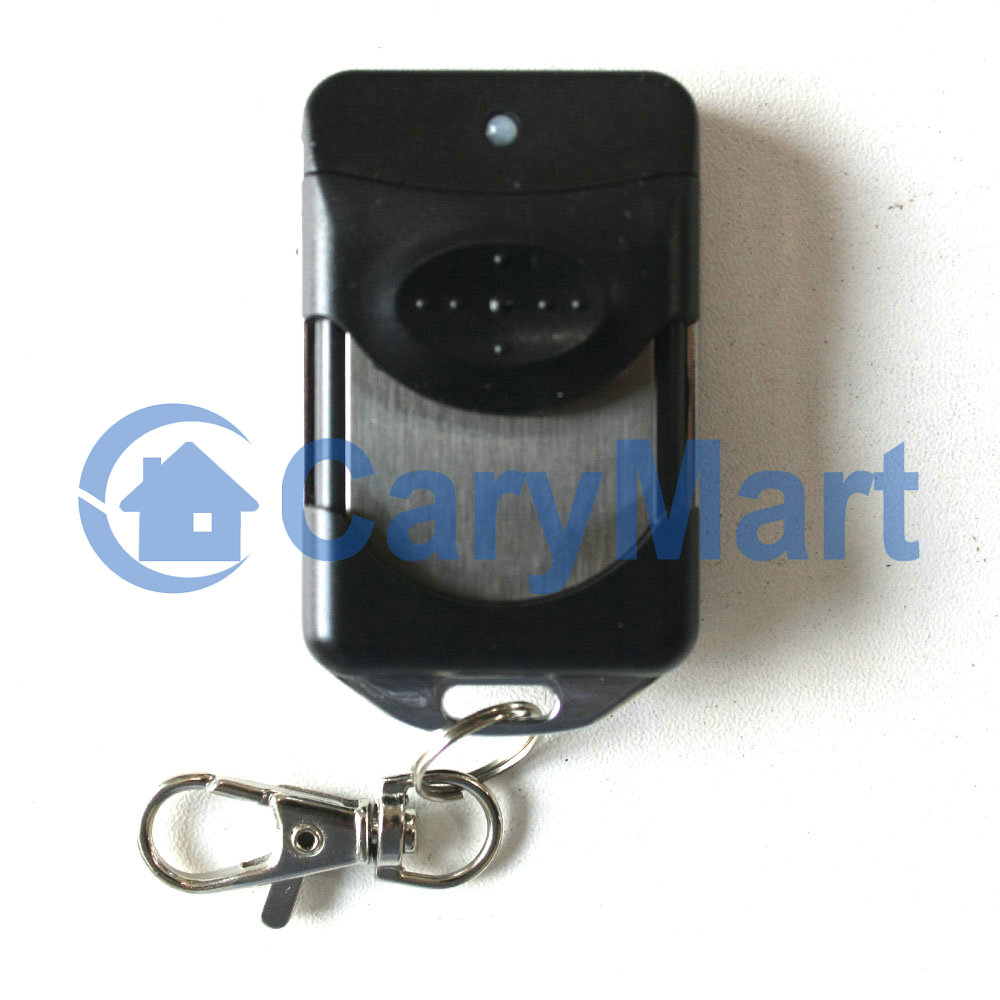

With
Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide
down the button will appear.

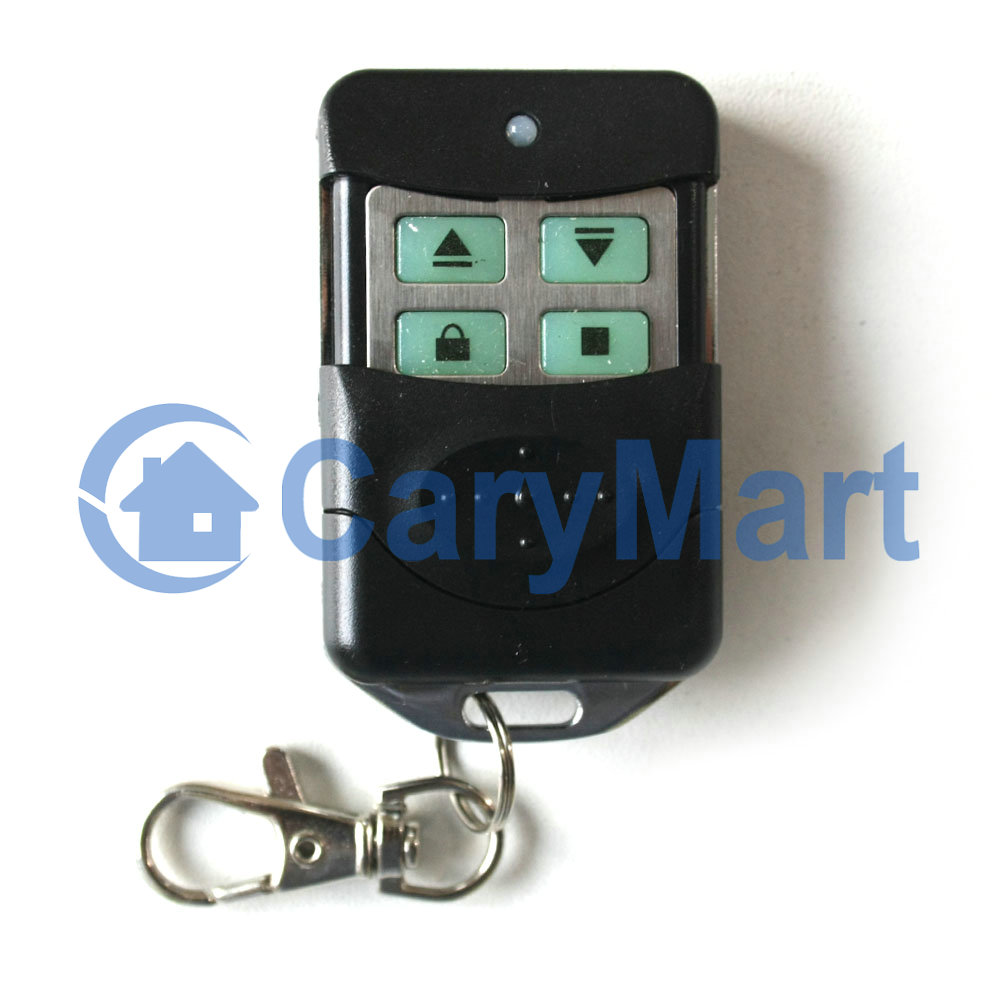

Channel/Button:
4
Button
Symbol: Up, Down, Lock, Square
Operating
Voltage: 12V (1
x 23A -12V battery, can be used
for 12 months)
Operating
Frequency: 433Mhz
Encoding
Chip: EV1527
Encoding
Type: Learning code (up to 1 million codes, reducing code collision and
unauthorized code scanning possibilities.)
Transmitting
Distance: 50m / 150ft (theoretically)
Operating
Temperature: -20 ° C to +70 ° C
Unit
Size: 60mm x 36mm x 16mm
Note:
If you
want more transmitters, you can choose the cloner transmitters, such as model
0021112 (XB-4C). If you use the transmitter XB-4C to copy your transmitter,
then the transmitter XB-4C also can work with your receiver.
Working Range:
With a transmitter to form a complete set, the maximum
working distance can reach 50M in an
open ground.
The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this
maximum working distance.
If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CP-4L or CB-4L transmitters.
Usage (with transmitter):
First connect
the plug of chain motor to the socket of receiver.
Press and
hold button Up of transmitter: Motor rotates in positive direction.
Release
button Up of transmitter: Motor stops.
Press and
hold button Down of transmitter: Motor rotates in reversal direction.
Release
button Down of transmitter: Motor stops.
Press button
Lock of transmitter to
lock
the
system. At this time, buttons Up or Down can not operate the motor.
Press the
button Square of transmitter to unlock the system.
Chang motor rotation direction:
1) First turn off the power of the receiver.
2) Press and hold the learning button of receiver, and turn on the
power of the receiver at the same time.
3) When signal
LED flashes 3 times, then release the learning
button. It means the setting is successful.
